Straight & Spiral

Top Bearing Ultra Performance Compression Flush Trim 1/4" Shank Router Bit

Amanda Online Need help? Chat with us

Product Parameters

Description

The Ultra-Performance trim bits feature a solid carbide sleeve welded to a hardened steel core. This results in a bit that performs like a solid carbide bit which is considerably less expensive. Upgrain routing is where this bit shines and with it's complex up-down or compression geometry this bit produces a finish that is unmatched by standard flush trim bits.

This Top Bearing Ultra-Perfomance Compression Flush Trim Router Bit is constructed from solid carbide and has a 3/4" cutting height and a 1/2" diameter with an overall length of 2-7/16" and a 1/4" shank.

Bit Specs
Material:Carbide
Overall Length:2-7/16"
Largest Diameter:1/2"
Number of Flutes:2
Number of Bits:1
Shank Size:1/4"
Cut Direction:Compression
Cutting Diameter:1/2"
Cutting Length:3/4"

Inquiry This Product Now

You May Also Like

Flush Trim Template Router Bit Set

3/4" Diameter X 1" Height Straight 1/2" Shank Router Bit

See Details
Flush Trim Template Router Bit Set

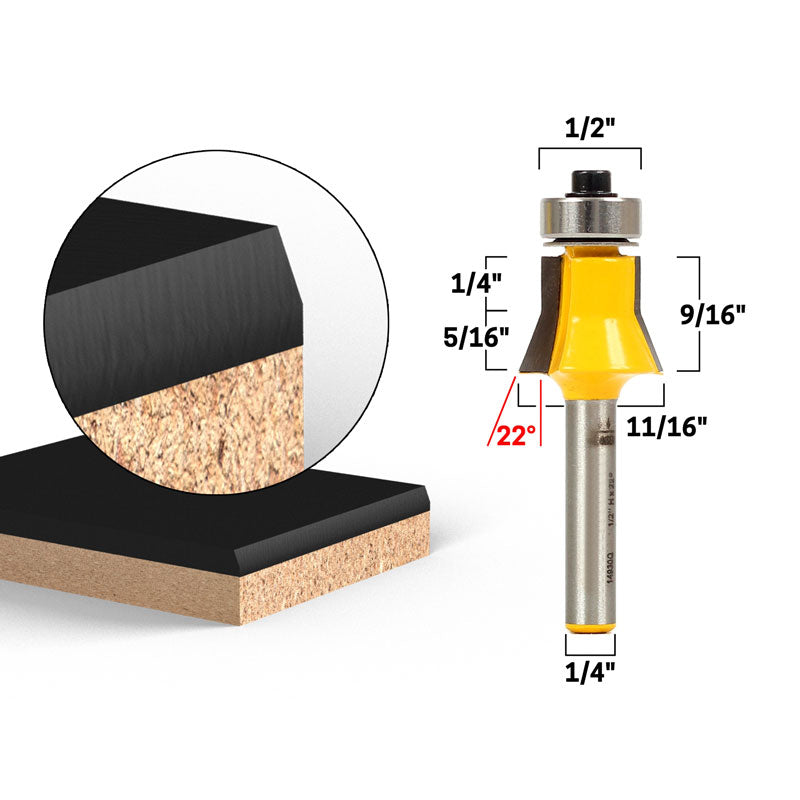

2° Combination Bevel Trim 1/4" Shank Router Bit

See Details
Flush Trim Template Router Bit Set

3 Bit Undersized Dado Router Bit Set For 3/4" 1/2" & 1/4" Plywood

See Details
Flush Trim Template Router Bit Set

2 1/4" Diameter Bottom Cleaning 1/2" Shank Router Bit

See Details

Frequently Asked Questions

It is suitable for hardwood, softwood, plywood, MDF, and many laminated boards. Always make a test cut first to confirm feed speed and edge quality.

Yes. Custom diameter, shank size, coating, laser marking, packaging, and OEM branding can be discussed based on your drawing or sample.

It can be used in suitable router tables, CNC routers, and compatible woodworking routing setups. Please confirm shank size, machine speed, and fixture stability before production.

Send the product model, quantity, target market, packaging requirements, and any custom specifications to our sales team for a detailed quotation.

Yes. Private label packaging, logo marking, labels, and custom packing plans are available for distributors and tool brands.
