Joinery Router Bits

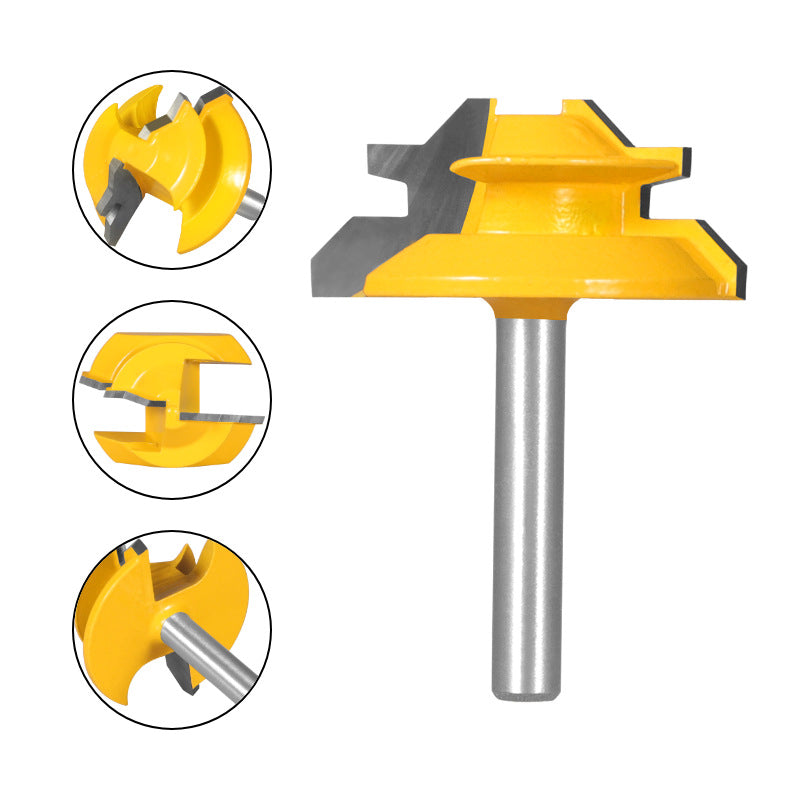

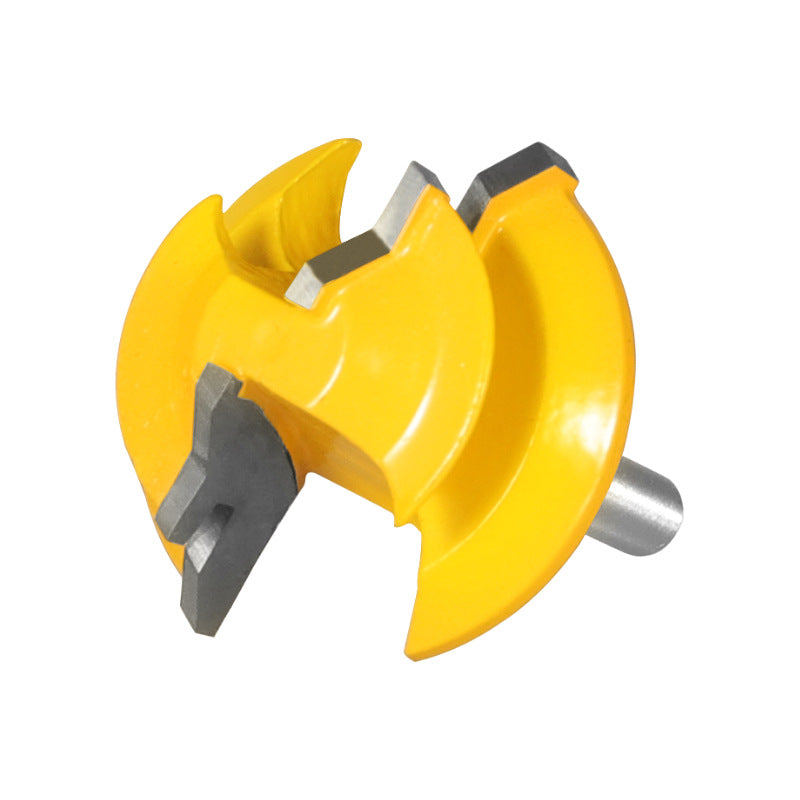

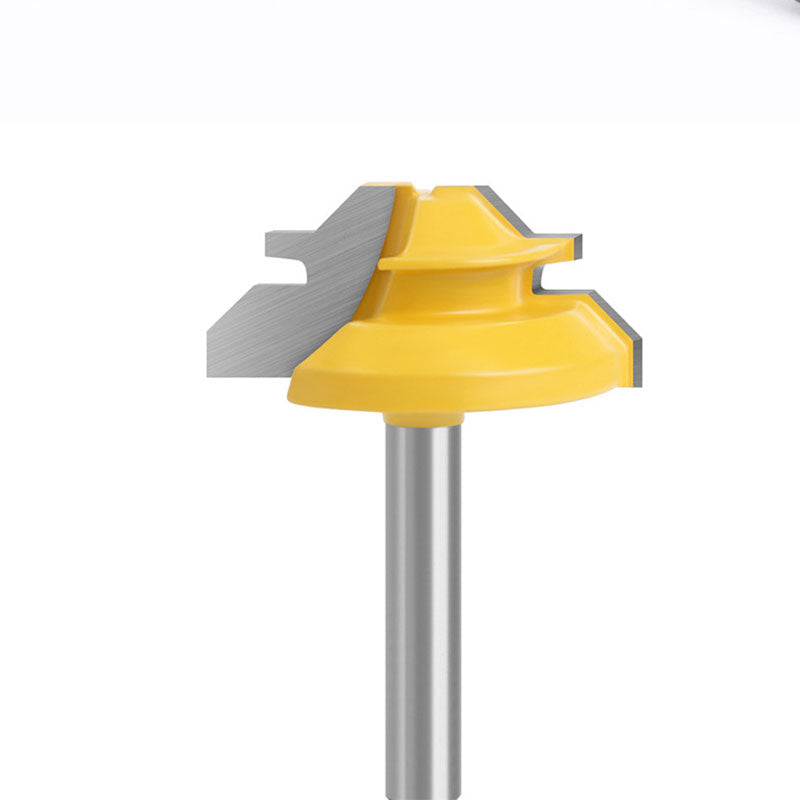

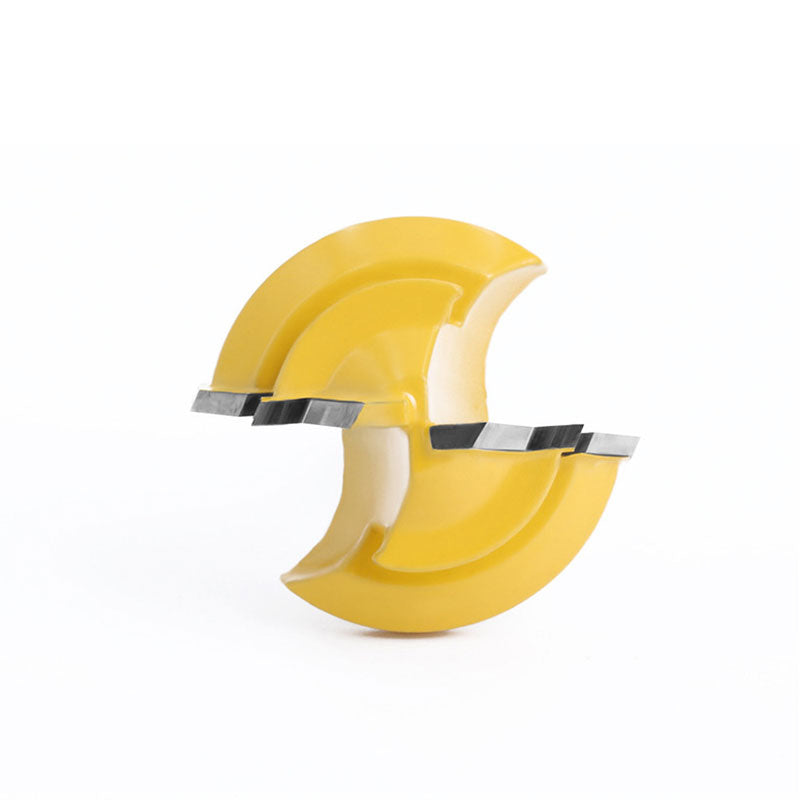

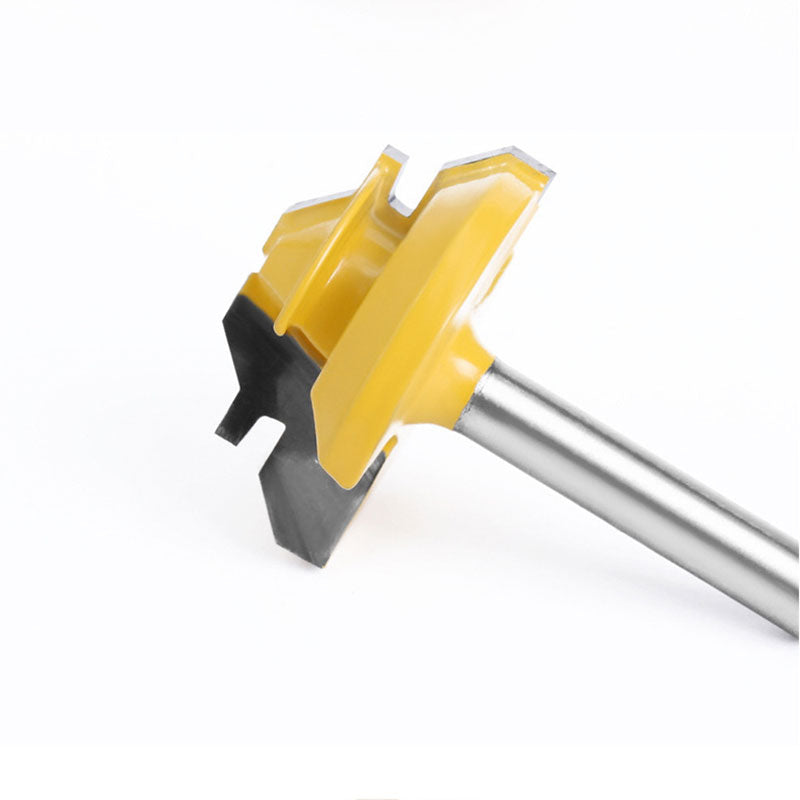

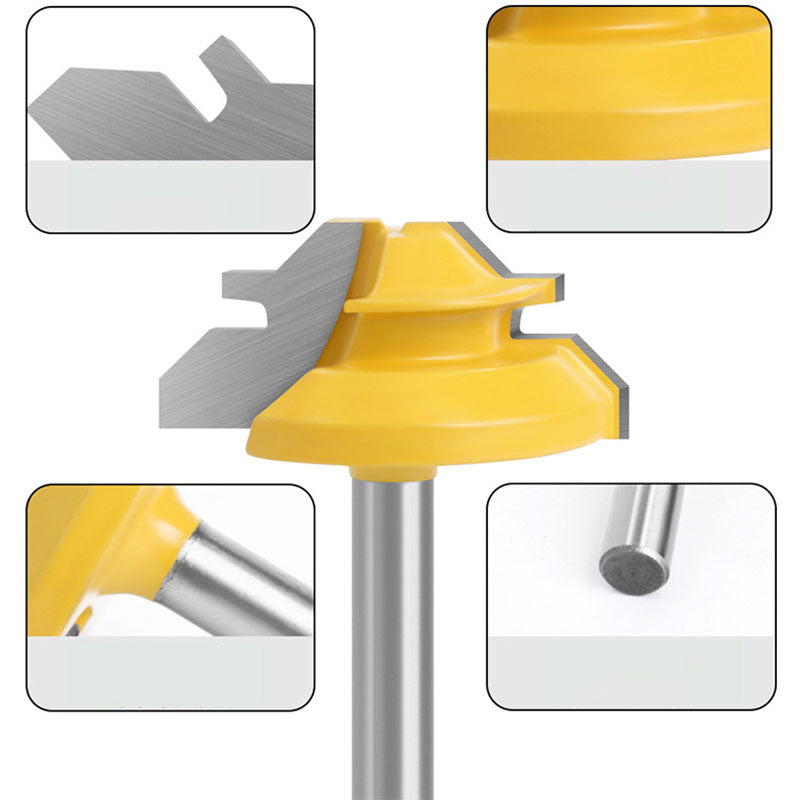

Medium Lock Miter 45° 3/4" Stock 1/4" Shank Router Bit
Product Parameters
Description
Use the reversible 45° lock miter glue joint router bit to join boards at 90°. The interlocking 45° cuts will produce extremely strong joints without having to struggle to keep the boards in place during clamping. Additionally, it will provide extra gluing surface resulting in an extremely strong and durable joint. When positioned properly, the bit will cut both pieces of stock without having to adjust the bit. Simply set the center of the stock to the center of the bit. Then, cut one piece horizontally and the second one vertically. Ideal for use with 3/4" stock. Two flute carbide cutters & 1/4" shank.
Features
Industrial Quality
C3 Tungsten Carbide Cutters
Solid Hardened Steel Body
Anti-Kickback Design
Build-Up Resistant Coating
Satisfaction Guaranteed
Bit Specs
Material:Carbide Tipped
Number of Bits:1
Shank Size:1/4"
Cutting Length:3/4"
Overall Length:2-5/8"
Largest Diameter:2"
Degrees:45°
Number of Flutes:2
Minimum Stock Thickness:5/8"
Maximum Stock Thickness:3/4"
