Edge Router Bits

5 Bit Chamfer Edge Forming 1/4" Shank Router Bit Set

Amanda Online Need help? Chat with us

Product Parameters

Description

While chamfer bits are mostly used for edging, these bits can also be used to create miter joints of various angles. Some of the available angle degrees are 11.2°, 1°, 22.°, 3° & 4°. Cutting these angles into 2 adjoining pieces of wood will create miter joints of 22.°, 3°, 4°, 6° & 9° degrees respectively.

Own this practical 5 bit chamfer Router bit set complete with the following 5 chamfer sizes; 11.2°, 1°, 22.°, 3° and 4°. Router bit dimensions are as follows:

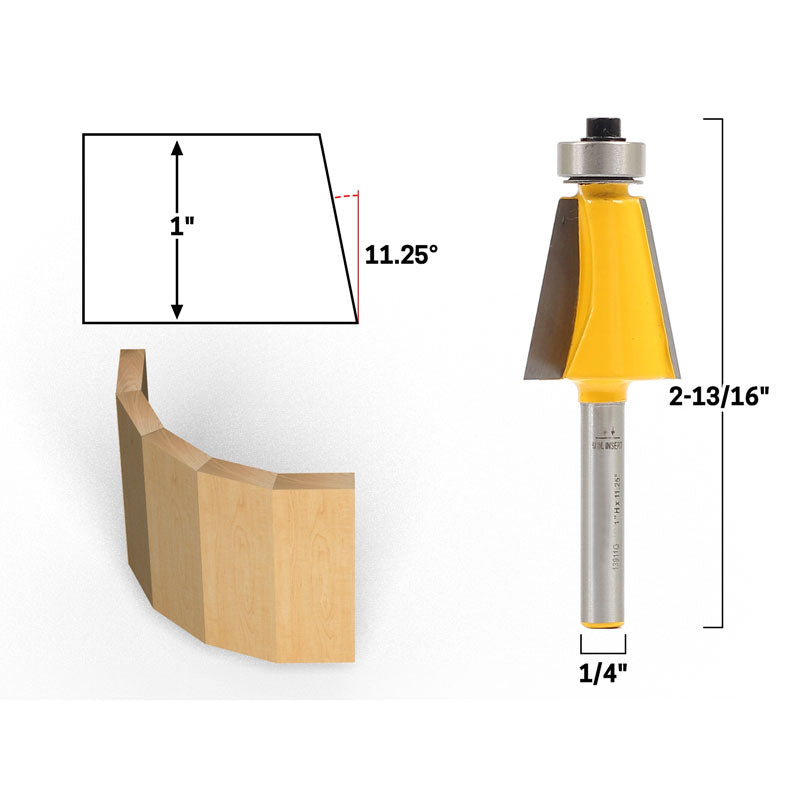

11.2° Chamfer - 7/8" Diameter, 1" Cutter Height, 2-3/4" Overall Height, 3/16" Cutter Depth

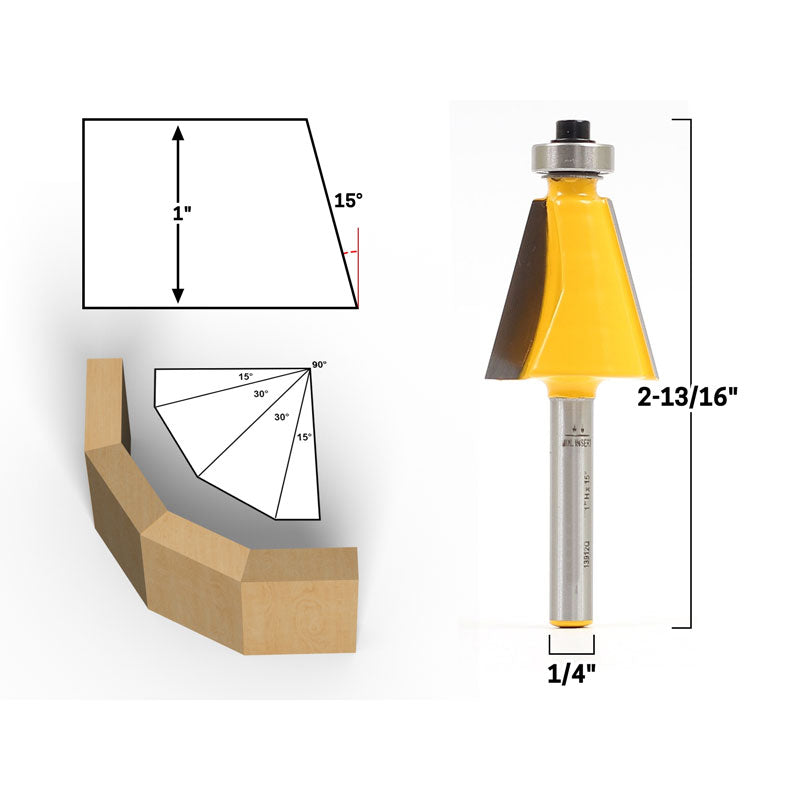

1° Chamfer - 1" Diameter, 1" Cutter Height, 2-3/4" Overall Height, 1/4" Cutter Depth

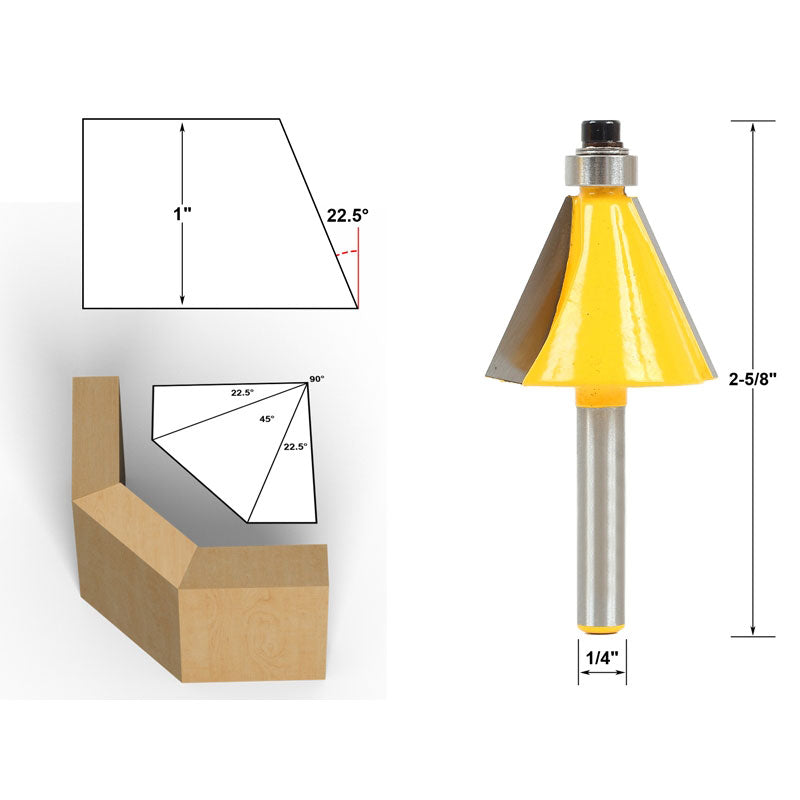

22.° Chamfer - 1-1/4" Diameter, 1" Cutter Height, 2-13/16" Overall Height, 3/8" Cutter Depth

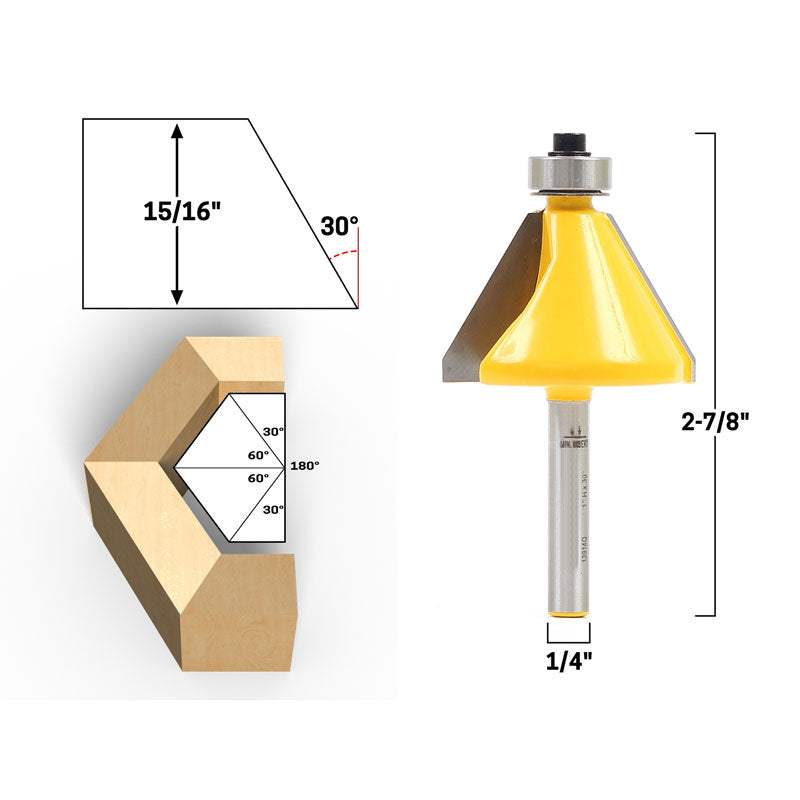

3° Chamfer - 1-1/2" Diameter, 1" Cutter Height, 2-3/4" Overall Height, 1/2" Cutter Depth
4° Chamfer - 1-7/8" Diameter, 23/32" Cutter Height, 2-1/2" Overall Height, 11/16" Cutter Depth. Two flute carbide cutters and 1/4" shanks.

Bit Specs
Material:Carbide Tipped
Degrees:Multi
Number of Flutes:2
Number of Bits:5
Shank Size:1/4"
Cutting Length:Multi
Cutting Depth:Multi

Inquiry This Product Now

You May Also Like

Flush Trim Template Router Bit Set

Compression Flush Trim Router Bit Top Bearing for Wood Edge Trimming Slotting Groove Routing and Bottom Cleaning

See Details
Flush Trim Template Router Bit Set

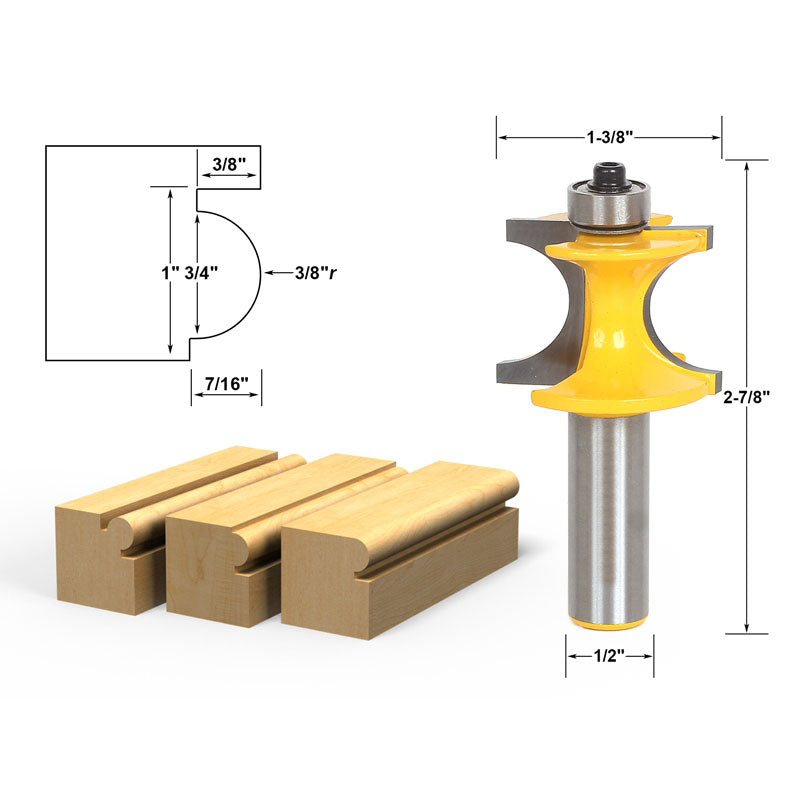

Bullnose Beading 3/8"r 3/4" bead 1/2" Shank Router Bit

See Details
Flush Trim Template Router Bit Set

Round Over Edging 1/4" Radius 1/4" Shank Router Bit

See Details
Flush Trim Template Router Bit Set

Cove Edging and Molding 1/4" Radius 1/4" Shank Router Bit

See Details

Frequently Asked Questions

It is suitable for hardwood, softwood, plywood, MDF, and many laminated boards. Always make a test cut first to confirm feed speed and edge quality.

Yes. Custom diameter, shank size, coating, laser marking, packaging, and OEM branding can be discussed based on your drawing or sample.

It can be used in suitable router tables, CNC routers, and compatible woodworking routing setups. Please confirm shank size, machine speed, and fixture stability before production.

Send the product model, quantity, target market, packaging requirements, and any custom specifications to our sales team for a detailed quotation.

Yes. Private label packaging, logo marking, labels, and custom packing plans are available for distributors and tool brands.
