Joinery Router Bits
45 Degree Up to 1" Stock Lock Miter 1/2" Shank Router Bit
Product Parameters
Description

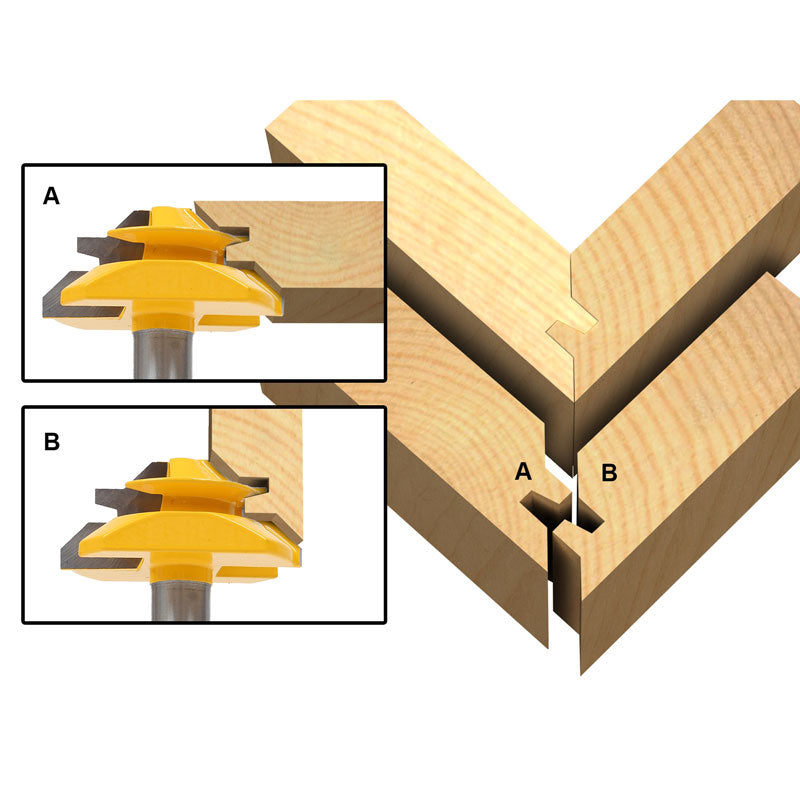

Use the reversible 4° lock miter glue joint Router bit to join boards at 9°. The interlocking 4° cuts will produce extremely strong joints without having to struggle to keep the boards in place during clamping. Additionally, it will provide extra gluing surface resulting in an extremely strong and durable joint. When positioned properly, the bit will cut both pieces of stock without having to adjust the bit. Simply set the center of the stock to the center of the bit. Then, cut one piece horizontally and the second one vertically. Use with stock ranging from 1/2" to 1". Two flute carbide cutters & 1/2" shank.
Bit Specs
Material:Carbide Tipped
Number of Bits:1
Shank Size:1/2"
Cutting Length:1"
Overall Length:3"
Largest Diameter:2-3/4"
Degrees:4°
Number of Flutes:2
Minimum Stock Thickness:3/4"
Maximum Stock Thickness:1"
