3-Flute Wood Planer Spoilboard Surfacing Insert Carbide Slab Router Bit
Product Parameters
Description

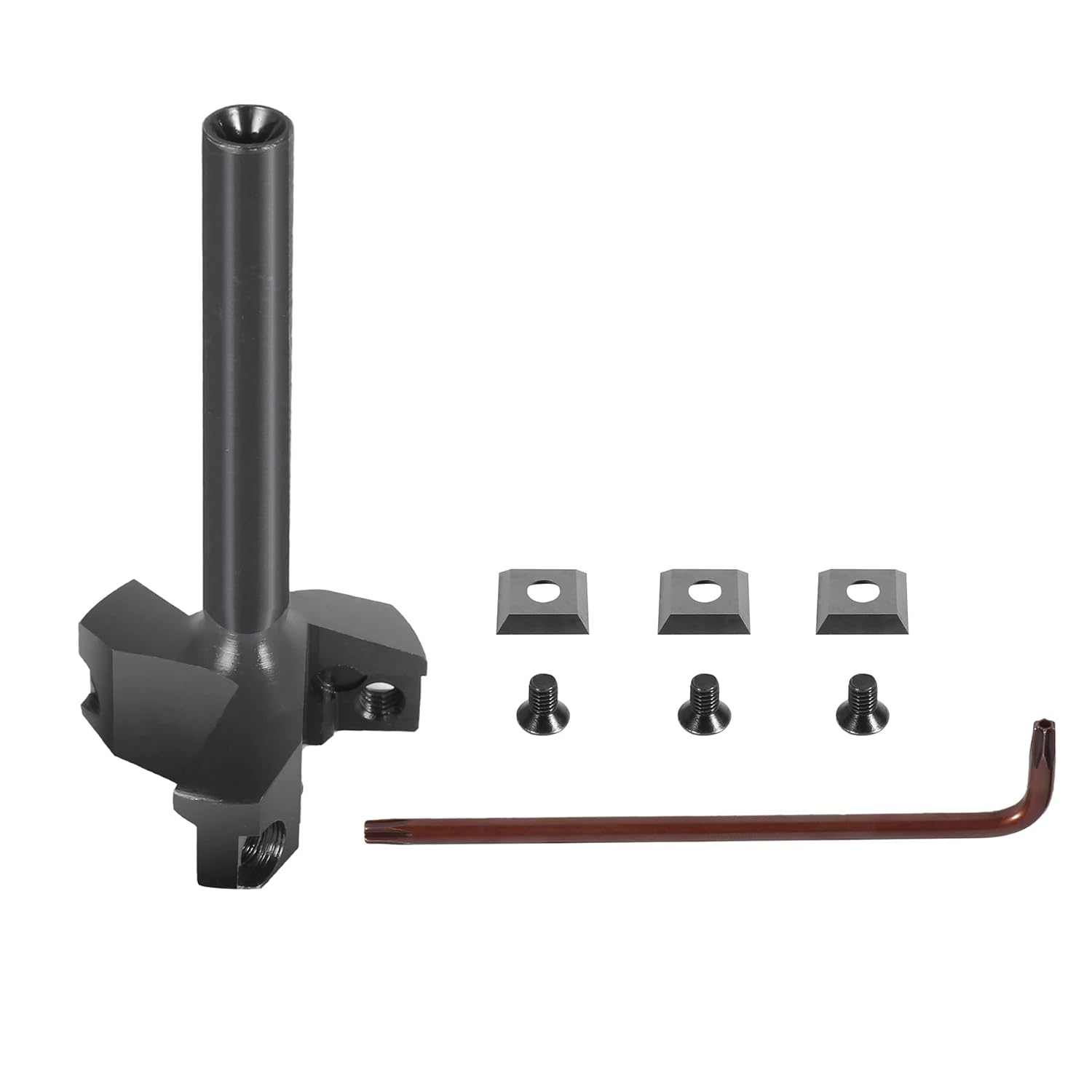

The surfacing router bit utilizes 4-sid solid carbide inserts. All 4 edges can be used, use a screwdriver(include) to make other blade edge outside.

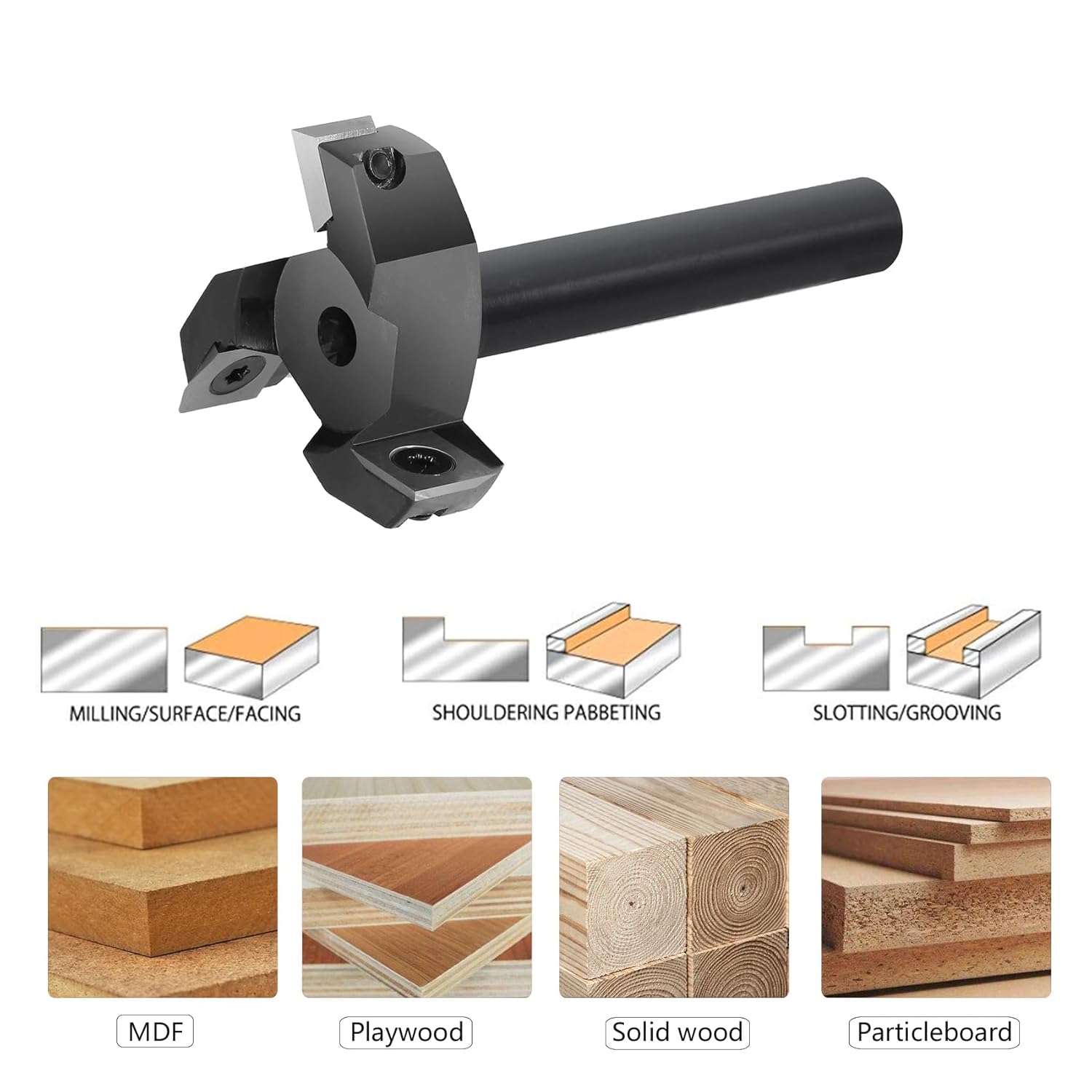

This professional bottom cleaning router bit is not only perfect for wood slab flattening, resurface or plane the top surface of the spoilboard, but also for trimming and slotting/grooving.
Replace the carbide inserts when needed, instead of replacing the whole bit. Cost effective solution compared to brazed router bits and solid carbide spiral bits.
Suitable for woods, mdf, laminate, particle board, plywood compact panel, acrylic and etc.
3 wings wood cnc router,

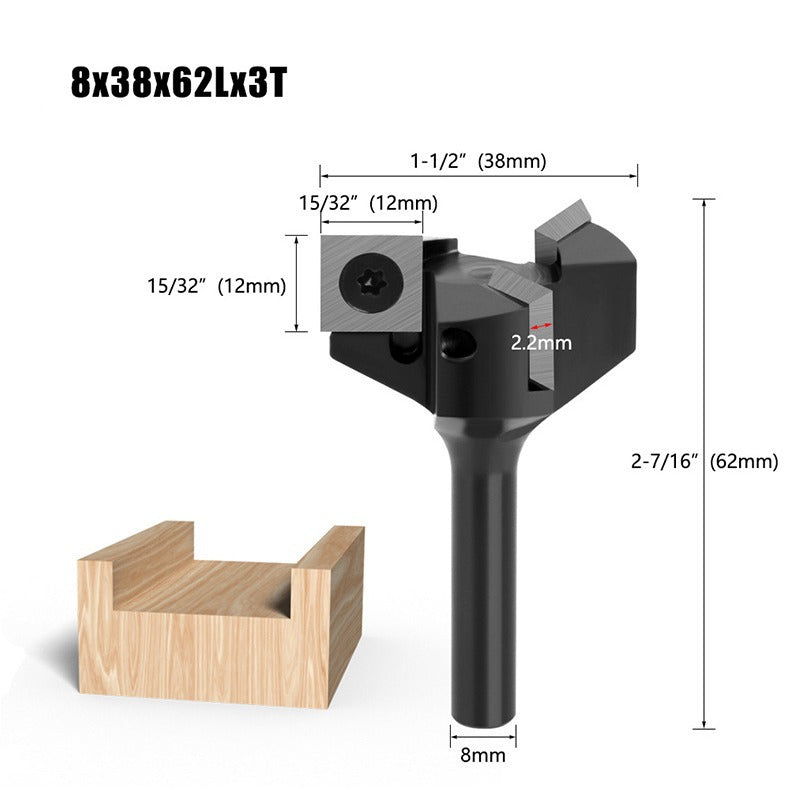

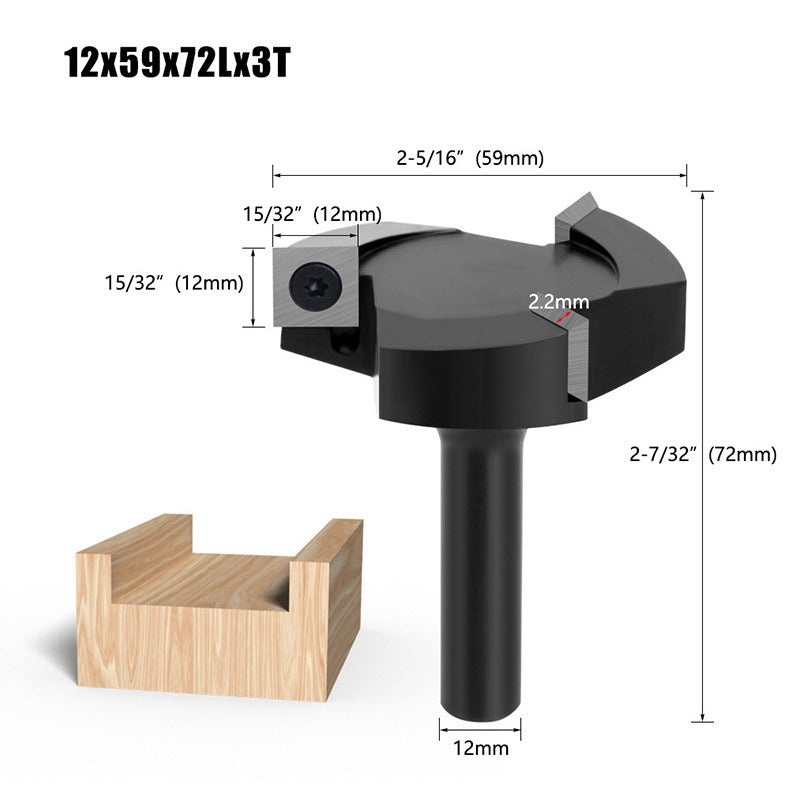

Shank: 8mm 12mm;

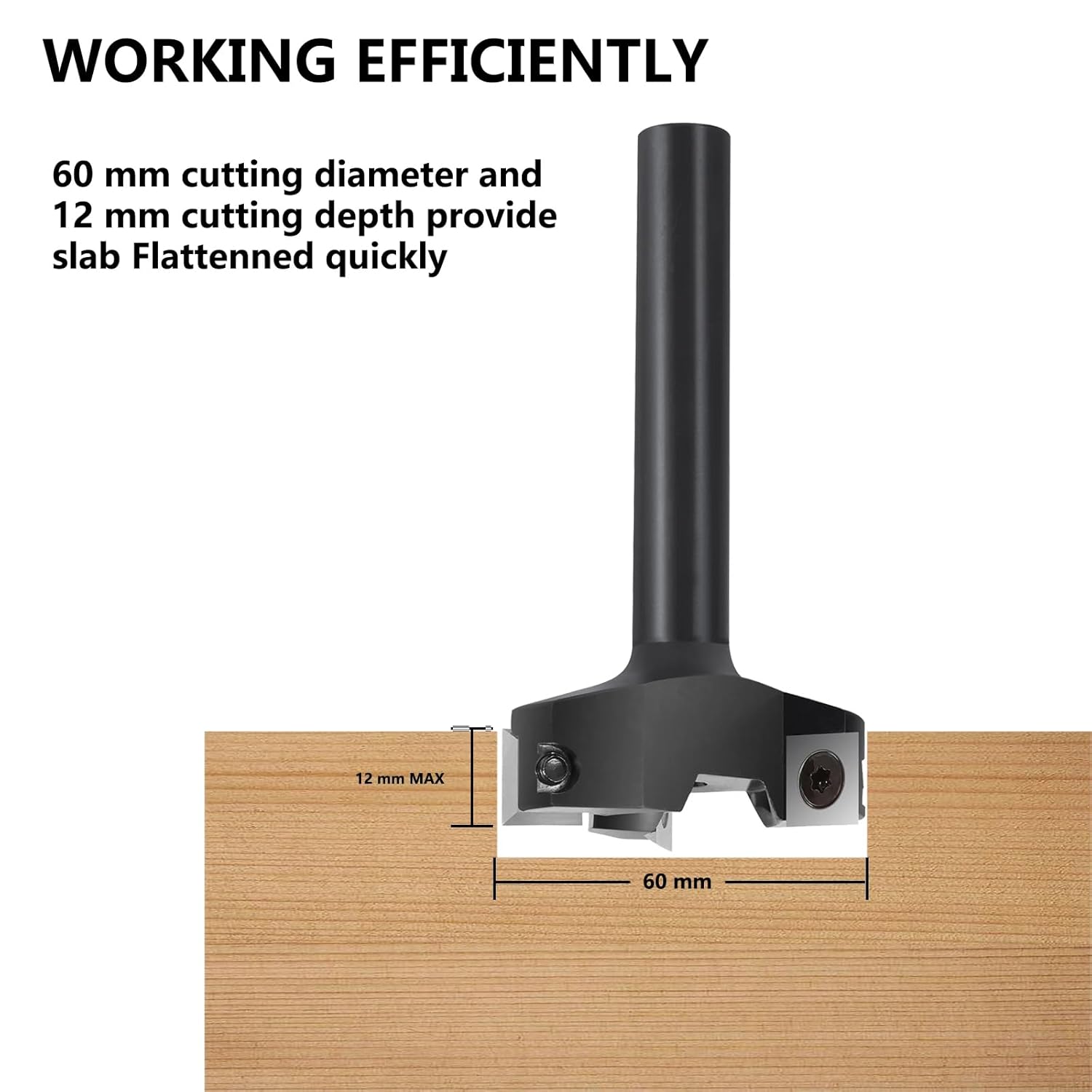

Cut diameter: 35mm 60mm;

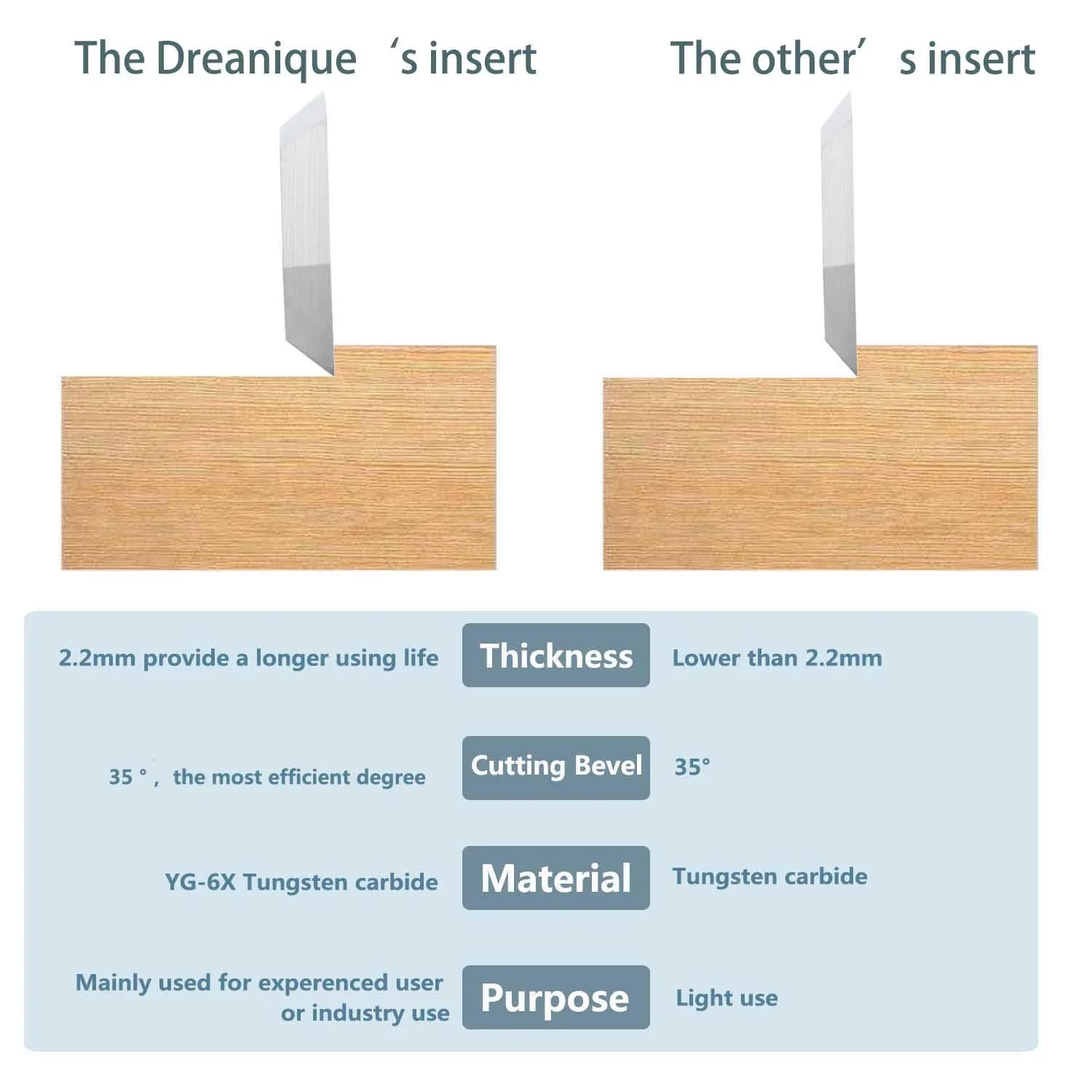

Carbide Inserts: 10.5*10.5*2.2mm 12*12*2.2mm.
Fit forDreaniqueInsert

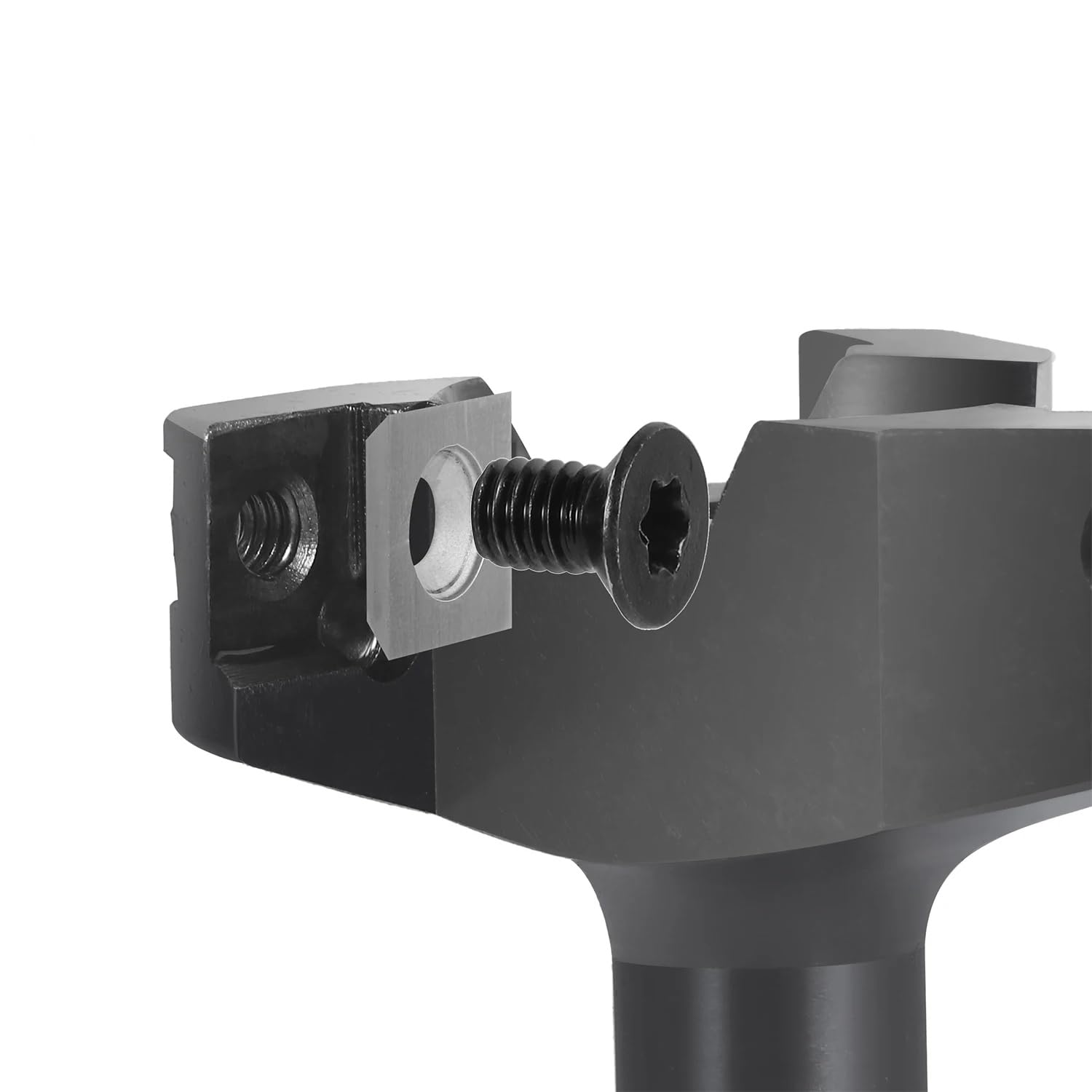

Countersunk screw
Use on CNC and other automatic routers as well as hand-held and table-mounted portable routers. Such as woodworking engraving machine, trimming machine, etc.
Cutting parameter:
D35: Feed 5000-10000mm/min, RPM: 10000-15000
D60: Feed 6000-12000mm/min, RPM: 10000-15000
