CNC Router Bits

3/16" Tapered Upcut Spiral ZRN Coated 1/4" Shank CNC Router Bit

Amanda Online Need help? Chat with us

Product Parameters

Description

CNC tapered end mills with ZRN coating provide the extra length needed to carve 3D shapes out of solid wood, plastic, foam, and other materials. The tapered design provides added strength to the bit while still maintaining a small diameter at the bit's tip. This unique design provides clearance when routing 3D profiles and allows you to create complex carvings in all kinds of stock. With the added ZRN coating, the bit’s lifespan and durability are increased substantially avoiding unnecessary down time.

This tapered end mill has a 3/16" diameter cutting tip and a 1" cutting length. The 3 flutes and the ZRN coating provide great performance and extended tool life.

Bit Specs
Coating:Zirconium Nitride (ZrN)
Cut Direction:Upcut
Number of Bits:1
Taper Angle:1°
End Mill Type:Taper
Material:Solid Carbide
Shank Size:1/4"
Degrees:1°
Cutting Diameter:3/16"
Cutting Length:1"
Overall Length:3"
Number of Flutes:3

Inquiry This Product Now

You May Also Like

Flush Trim Template Router Bit Set

1 1/2" Radius Horizontal Crown 1/2" Shank Router Bit

See Details
Flush Trim Template Router Bit Set

1/4" Diameter O Flute Upcut Spiral End Mill 1/4" Shank CNC Router Bit

See Details
Flush Trim Template Router Bit Set

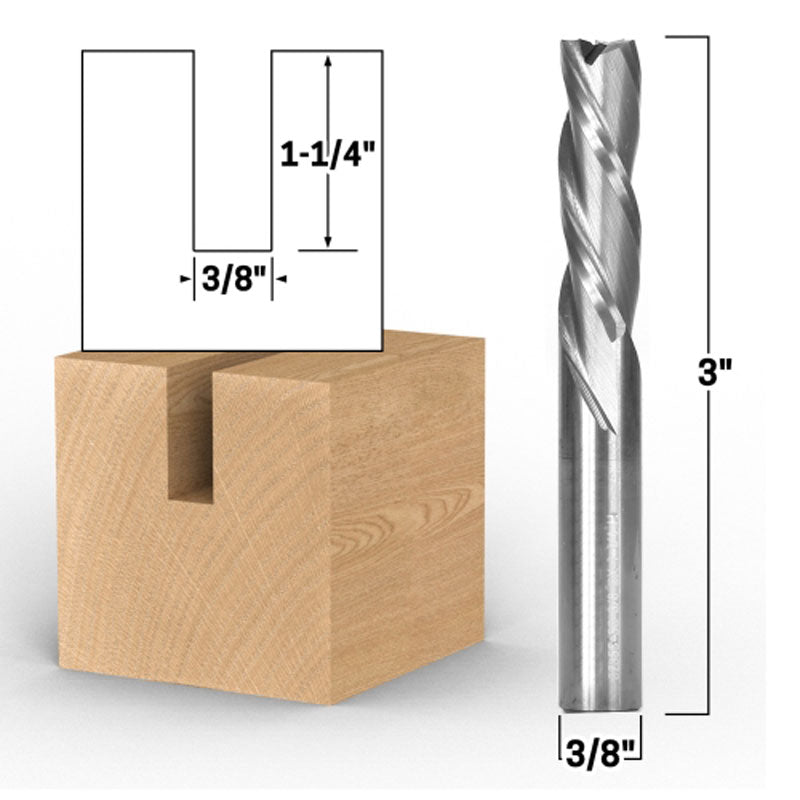

3/8" Dia. 3 Flute Downcut Spiral End Mill 3/8" Shank CNC Router Bit

See Details
Flush Trim Template Router Bit Set

1/4" Dia 2 Flute Low Helix Upcut Spiral End Mill 1/4" Shank CNC Router Bit

See Details

Frequently Asked Questions

It is suitable for hardwood, softwood, plywood, MDF, and many laminated boards. Always make a test cut first to confirm feed speed and edge quality.

Yes. Custom diameter, shank size, coating, laser marking, packaging, and OEM branding can be discussed based on your drawing or sample.

It can be used in suitable router tables, CNC routers, and compatible woodworking routing setups. Please confirm shank size, machine speed, and fixture stability before production.

Send the product model, quantity, target market, packaging requirements, and any custom specifications to our sales team for a detailed quotation.

Yes. Private label packaging, logo marking, labels, and custom packing plans are available for distributors and tool brands.
