CNC Router Bits

2.22" Radius Horizontal Crown 1/2" Shank Router Bit

Amanda Online Need help? Chat with us

Product Parameters

Description

Horizontal crown router bits, also referred to as large bowl router bits, create large spherical indents in a variety of materials and can be plunged straight into the work piece. These are perfect for making large custom crown moldings, bowls, coin trays, mancala game boards and other interesting projects. These can be used on solid wood and MDF.

Use the Router bit to create a 2.22" radius concave bowl or crater-like indents at 2-15/32" diameter across and 3/8" deep. May be plunged deeper to create side walls or shallower for a smaller diameter. Blades meet in the center allowing true vertical plunging. CNC compatible. 1/16" thick carbide. 1/2" Shank.

Bit Specs
Number of Bits:1
Radius:2.22"
Number of Flutes:2
Shank Size:1/2"
Cutting Diameter:2-15/32"
Cutting Length:5/8"
Overall Length:2-7/16"
Largest Diameter:2-15/32"
Material:Carbide Tipped

Inquiry This Product Now

You May Also Like

Flush Trim Template Router Bit Set

Down Cut Solid Carbide 1/4"X 3/4" X 1/4" X 2 1/2" CNC Router Bit

See Details
Flush Trim Template Router Bit Set

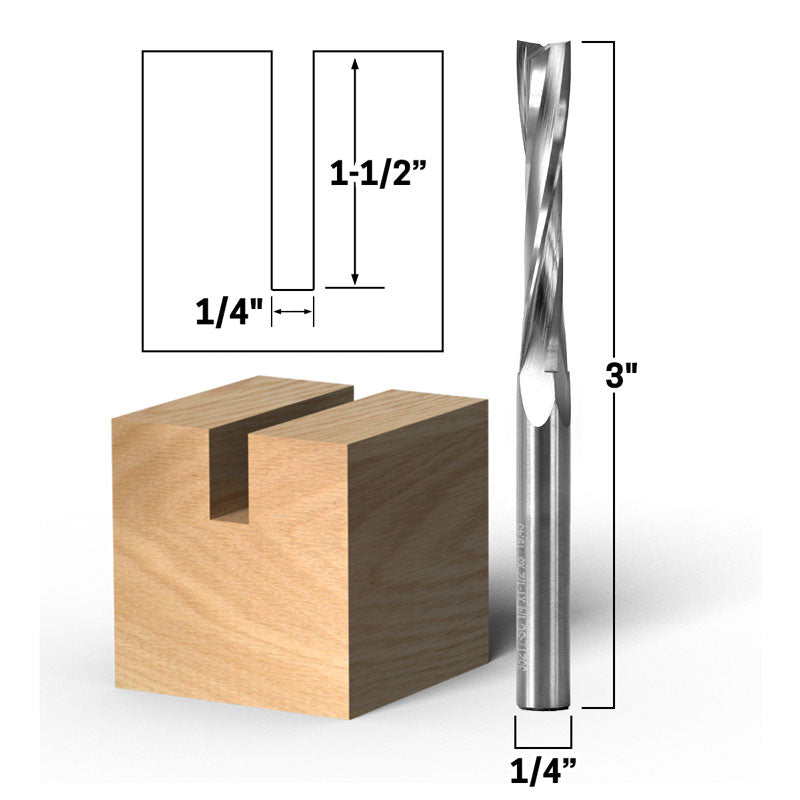

1/4" Dia 2 Flute Low Helix Upcut Spiral End Mill 1/4" Shank CNC Router Bit

See Details
Flush Trim Template Router Bit Set

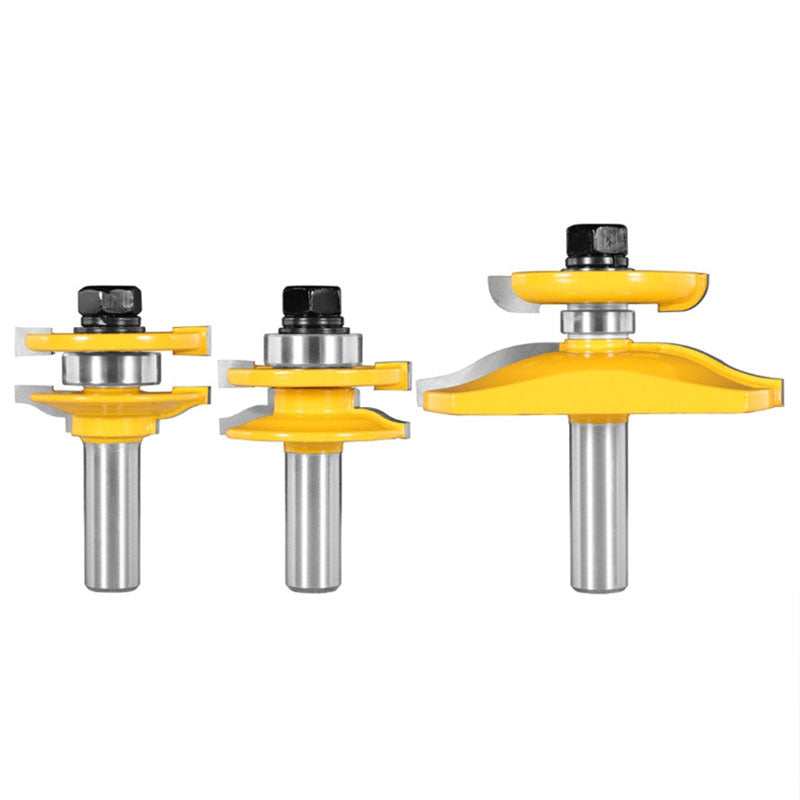

Shaker 3 Bit Raised Panel Cabinet Door Router Bit Set 1/2" Shank with Back cutter Panel Raiser

See Details
Flush Trim Template Router Bit Set

1/4" Diameter O Flute Upcut Spiral End Mill 1/4" Shank CNC Router Bit

See Details

Frequently Asked Questions

It is suitable for hardwood, softwood, plywood, MDF, and many laminated boards. Always make a test cut first to confirm feed speed and edge quality.

Yes. Custom diameter, shank size, coating, laser marking, packaging, and OEM branding can be discussed based on your drawing or sample.

It can be used in suitable router tables, CNC routers, and compatible woodworking routing setups. Please confirm shank size, machine speed, and fixture stability before production.

Send the product model, quantity, target market, packaging requirements, and any custom specifications to our sales team for a detailed quotation.

Yes. Private label packaging, logo marking, labels, and custom packing plans are available for distributors and tool brands.
