Joinery Router Bits

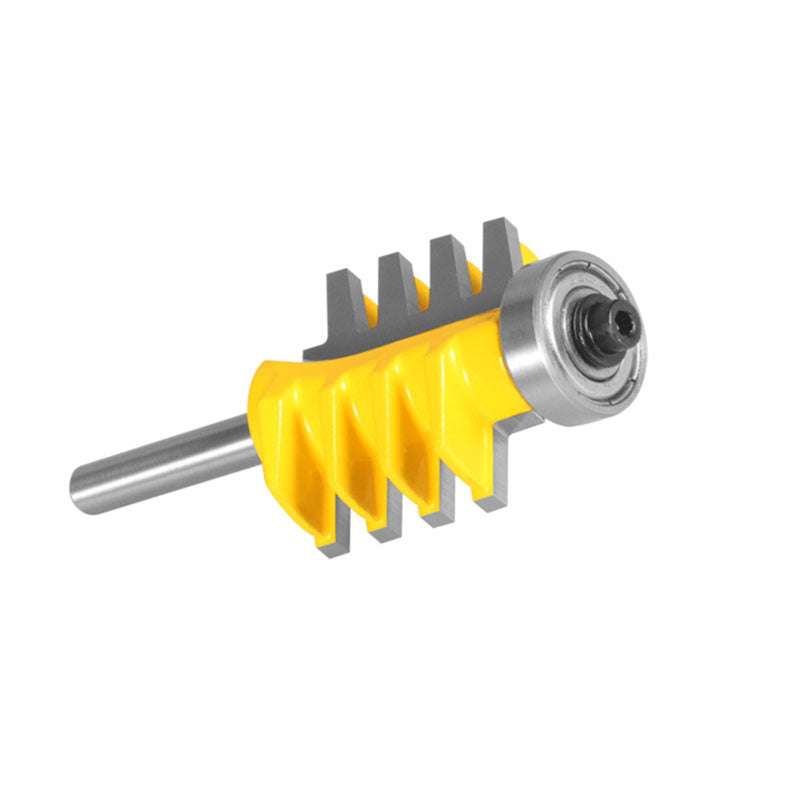

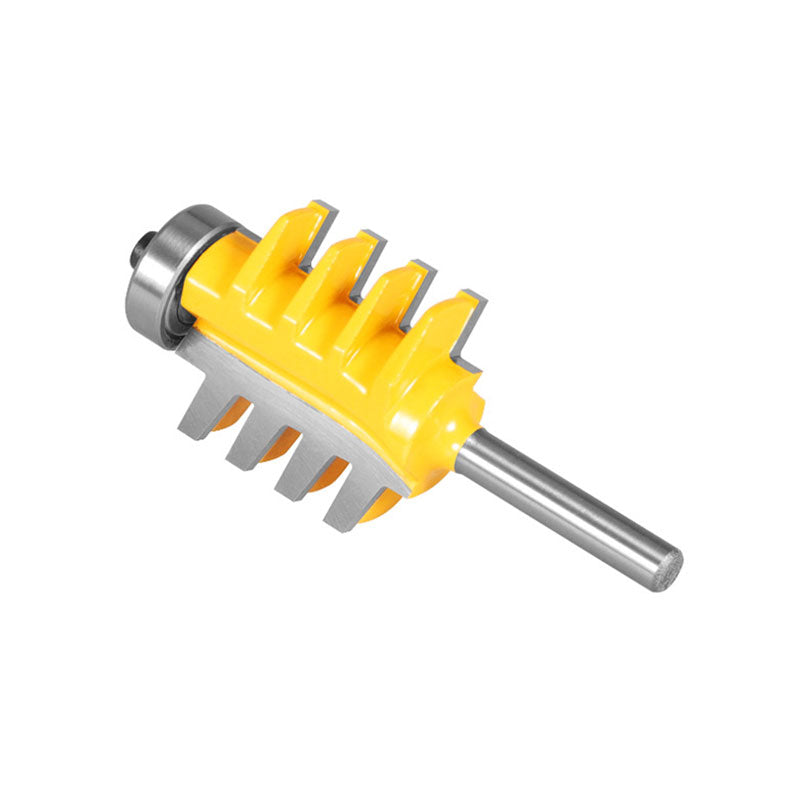

1 1/2" Easy Setup Finger Joint 1/2" Shank Router Bit
Product Parameters
Description
Easy setup finger joint router bits take the hassle and frustration out of setting up a properly aligned finger joint. A standard finger joint bit has a cutting height center that is difficult to locate and align with the stock. We have designed the top edge of the center tooth to be perfectly horizontal thereby enabling you to use the corner of that tooth as the center reference point. The difference is subtle but very effective. By lining up that point with the center of your stock you will have a perfect setup every time regardless of the thickness of your stock.
This Easy-Setup finger joint router bit can cut finger joints from 3/8" up to 1-1/2" thick. The overall length is 3-9/16" and the shank is 1/2".
Bit Specs
Largest Diameter:1-3/8"
Number of Flutes:2
Minimum Stock Thickness:3/8"
Maximum Stock Thickness:1-1/2"
Number of Bits:1
Shank Size:1/2"
Cutting Length:1-1/2"
Cutting Depth:5/16"
Overall Length:3-9/16"
